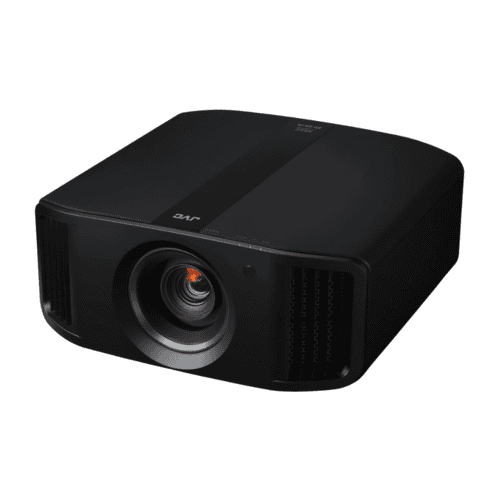

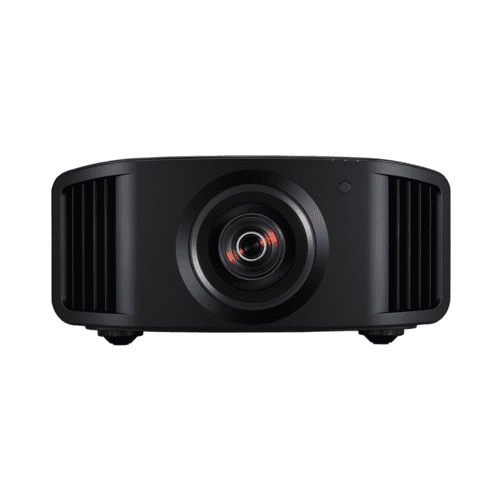

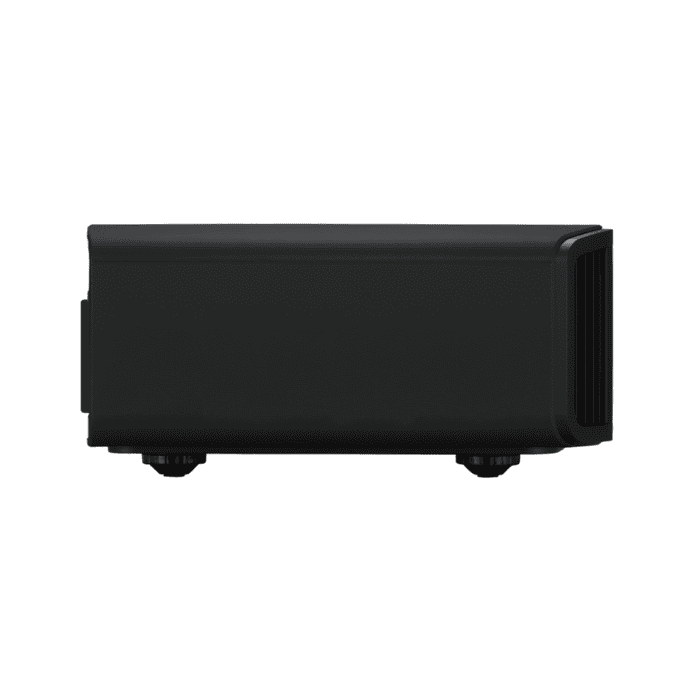

DLA-NZ800 8K Projector
RM76,999.00
Gen2 8K/e-shiftX 8K60p/4K120p home projector
JVC’s proprietary 8K/e-shiftX, which is a combination of “e-shift technology” – a high-resolution display technology that doubles the resolution by shifting a pixel by 0.5 pixels in four directions up, down, left, and right – and “0.69-inch native 4K D-ILA devices” has made significant progress as the second generation 8K/e-shiftX. The latest version features JVC’s newest 8K scaling engine that drastically improves the projector’s sharpness and detail across a wide range of content, including 8K (8192 x 4320 pixels) sources.

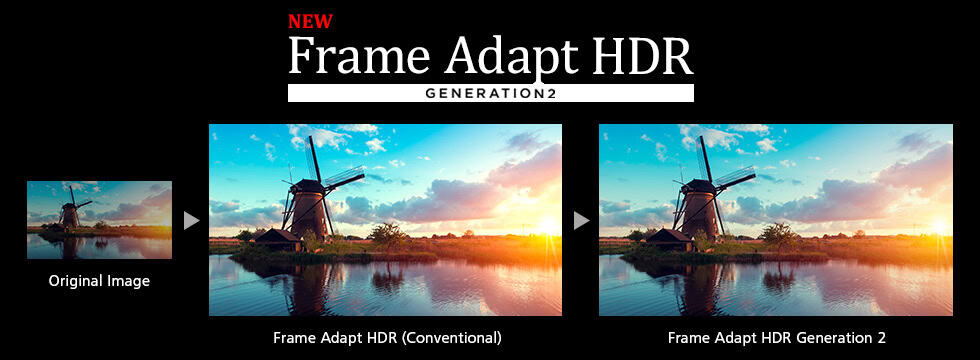

Gen2 Frame Adapt HDR Function for Brighter and More Colorful HDR Images
The Frame Adapt HDR function, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of any HDR10 content per scene or per frame and perform real-time tone mapping to optimal dynamic range for video projection, has evolved into the second generation (Gen2). The algorithm for tone mapping has been fully reexamined to achieve HDR images with higher definition. Furthermore, the proprietary algorithm for tone curve selection has also been improved to reproduce HDR images that are brighter, more colorful and have a wider dynamic range.

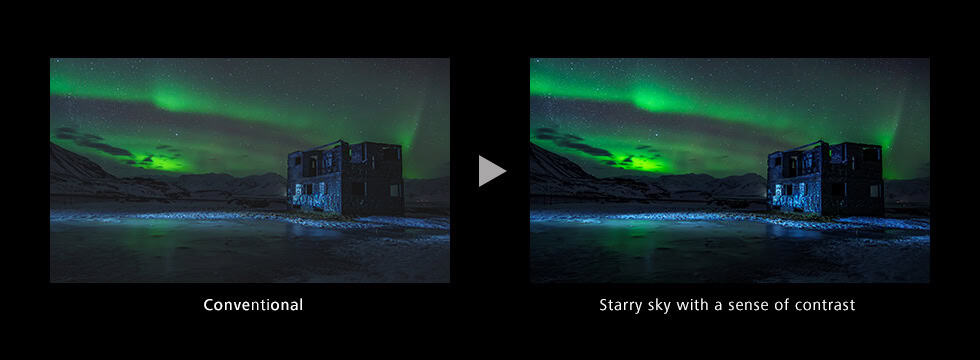

Unparalleled Black Level and High Luminance Deliver Images Brimming with Reality
The new D-ILA projector boasts the industry’s highest native contrast with the Gen3 0.69-inch 4K D-ILA device and wire-grid optical engine, however in combination with the dynamic laser light control, which analyzes the incoming video signal to automatically control the amount of outgoing laser light, a dynamic contrast level of ∞:1 (infinity to 1) can be achieved in scenes with pitch blackness by completely shutting off the light source. As a result, images brimming with reality that are closer to human perception can be produced. Likewise, the new algorithm enables laser control with greater precision to meet the user’s preferences.
Essential all-glass lens to depict all the data in the 8K images
The high-end DLA-NZ800 is equipped with an 17-element, 15-group all-glass lens featuring a full aluminium lens barrel. To project highresolution 8K images to every corner of the screen, the projector incorporates five ED lenses calibrated for differences in the R/G/B refractive index to reduce chromatic aberration and colour fringing when lens shift kicks in to deliver precise reproduction of 4K- or 8K-resolution projection.
8K60p Input for Ultra-high Res 8K Content. 4K120p Input for Games and More.
This D-ILA models support a variety of inputs including full 48Gbps 8K60p. By adopting LSIs developed with the latest technology, it is now possible to process four times the amount of information from input to D-ILA device instantly and correctly display 8K signals. As a result, users can enjoy stable high-quality 8K images at all times. Also, using 4K120p input with the Low Latency Mode further improves response to the player’s rapid operations, making it effective for displaying high frame-rate gaming content on large screens.

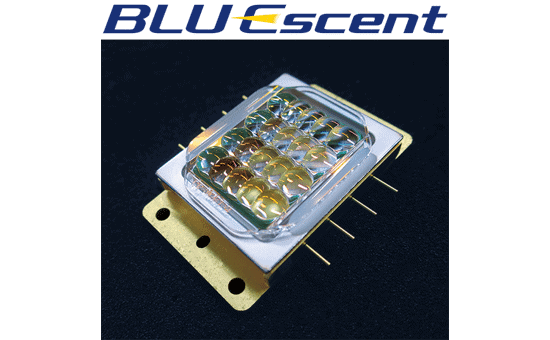

Exceptional Brightness and Longevity with BLU-Escent Laser
Another essential aspect of projectors lies in their light source. The DLA-NZ series adopts JVC’s original laser light source “BLU-Escent Laser” to achieve exceptional peak brightness of 3,300 lumens on the DLA-NZ900 and 2,700 lumens on the DLA-NZ800, both with longevity of 20,000 hours. When compared to the first-generation laser projector*, the projectors’ brightness per effective wattage has improved 1.9-fold, which, as a result, also contributes to saving power through improved power efficiency.
HDR Drastically Improves Expressive Power of Images
When it comes to reproducing the rich video information of HDR content, including the extended brightness range, BT.2020 wide color gamut and 10-bit gradation, rely on the new D-ILA projectors. Both models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the HDR10+ with dynamic metadata compatibility. The projectors’ improvements for higher brightness and contrast have helped to achieve a wider dynamic range, allowing users to enjoy an immersive experience with HDR images full of reality.

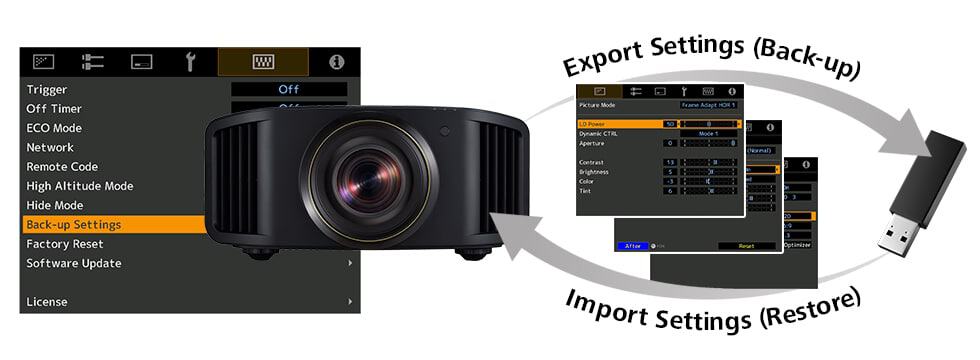

USB Back-up
This function saves the settings on the main unit menu to a commercially available USB flash drive. Professional adjustments can be saved or backed up in advance to undo unintended adjustments by children or family members.
Lens Shift function
Flexible installation is made possible thanks to the wide lens-shift function. As described in the diagram, wide shift ranges are offered vertically and horizontally to help deliver natural projected images without distortion.
FILMMAKER MODE™ that faithfully recreates the creator’s intentions
FILMMAKER MODE™ was developed by the UHD Alliance, an organization of Hollywood movie studios, TV studios, content distributors, consumer electronics manufacturers, and device developers, with the aim of faithfully reproducing the filmmakers' intentions in the home. When using this mode, picture quality adjustment functions such as frame interpolation and noise reduction are turned off, and the color temperature is set to D65 (6500K), allowing users to enjoy movies and documentaries with picture quality that is faithful to the original master.
Highlights
- 2nd Generation 8K/e-shiftX technology reproduces 8K image quality
- New BLU-Escent Laser Light Source
- 3rd Generation 0.69-inch 4K D-ILA (4096 x 2160) device x 3.
- High brightness of 2,700 lm provides vibrant and dynamic images
- Native Contrast Ratio of 100,000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
- 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
- HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
- Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
- 17-element, 15-group all-glass 65mm diameter high-quality lens.
- Wide Color Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.
- Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles.
- Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes. As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation. Additional Frame Adapt HDR picture modes allows for optimum playback with the widest variety of lighting conditions or theater environments.
- Theater Optimizer function, which works in Frame Adapt HDR mode, offers optimum HDR images by analyzing usage environments using the screen size and gain information and intelligently adjusts tone mapping. HDR Quantizer with New Auto (Wide) level mode provides brighter/more dynamic HDR images. *
- FILMMAKER MODE™ that faithfully recreates the creator’s intentions.*
- Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
- ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments
- Auto-Calibration Function using an optical sensor.
| Device | |
| D-ILA Technology | Yes |
| Chip Type | 3rd Generation 0.69-inch 4K D-ILA device |
| Native Resolution | 4096 x 2160 |
| Number Of Chips | 3 |
| 8K/e-shiftX | Yes |
| Display Resolution | 8192 x 4320 |
| Light Sourcce | |
| Laser | Yes |
| Type | New BLU-Escent Laser Diode |
| Life Time (Standard Mode) | 20000 hours |
| Picture | |
| Brightness | 2700 lm |
| Dynamic Contrast | Infinity : 1 |
| Native Contrast | 100000 : 1 |
| Dynamic Light Power control | Yes |
| Modes | Gentle, Strong, Off |
| Manual Aperture | Yes |
| Range | -15 (stops down) to 0 (opens up) |
| DCI-P3 Color Gamut | Yes |
| 100% REC 709 | Yes |
| Color Bit Depth | 12 bit |
| ISFccc Certification | Yes |
| HDR | |
| HDR10 | Yes |
| HDR10+ | Yes |
| Frame Adapt HDR | Yes |
| Theater Optimizer | Yes |
| HLG | Yes |
| Auto Tone Mapping | Yes |
| Mastering Info Display | Yes |
| Info data | MaxCLL, MaxFALL and DML |
| Deep Black Tone Control | Yes |
| Lens | |
| Zoom | 2 x |
| Throw Ratio | 1.43-2.92:1 |
| Diameter | 65mm |
| Material | All-glass |
| Build | 17-element, 15-group in full aluminium lens barrel. |
| Lens Shift | Yes |
| Range Horizontal | ± 34 % |
| Range Vertical | ± 80 % |
| Motorized Zoom | Yes |
| Motorized Shift | Yes |
| Motorized Focus | Yes |
| Projection Display size (diagonal) | 60 – 200 inch |
| Memory Function | Yes |
| Number of user presets | 10 |
| Lens Cover | Yes |
| HDMI | |
| HDMI | Yes |
| Number of Inputs | 2 |
| Data Rate | 48 Gbps |
| HDCP Version | 2.3 |
| 8K60P signal input | Yes |
| 4K120p signal input | Yes |
| 4K60P signal input | Yes |
| Video Signal range | 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24 |
| PC Signal range | VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120) |
| Input Level Adjustment | Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255) |
| Color Space Range | Auto/ YCbCr444 / YCbCr422 / RGB |
| EDID Modes | A , B and C (older hardware may need to use B settings) |

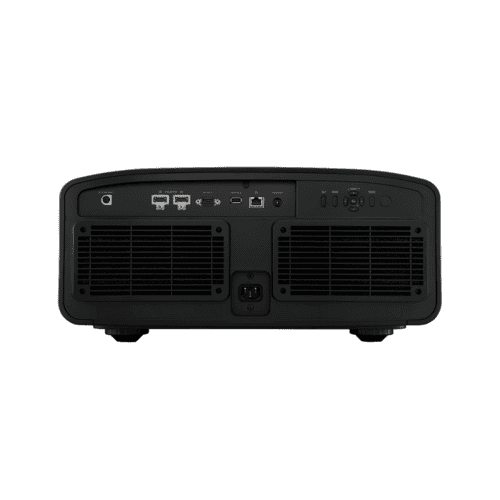

| Connections | |
| Trigger out | Yes |
| Connector | Mini-Jack (3,5mm) |
| Power | DC 12V / 100mA |
| 3D Synchro | Yes |
| Connector | Mini DIN 3-pin |
| LAN | Yes |
| Connector | RJ45 |
| RS-232 | Yes |
| Connector | D-sub 9-pin |
| Service | Yes |
| Connector | USB (Type A) for firmware update or backup |
| 3D | |
| 3D Capability | Yes |
| 3D Versions | Frame Packing, Side-by-Side, Top & Bottom |
| Frame Packing Resolutions | 720p 60/50, 1080p 24 |
| Side-by-Side Resolutions | 720p 60/50, 1080p 60/50/24, 1080i 60/50 |
| Top & Bottom Resolution | 720p 60/50, 1080p/24 |
| 3D Emitter (Optional) | Yes, PK-EM2 |
| 3D Glasses (Optional) | Yes, PK-AG3 |
| Picture settings | |
| Picture Modes | Natural, Cinema, Film, Vivid, HDR10+, Frame Adapt HDR, HDR10, HLG, 6 User modes |
| Color Temperatures | Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2 |
| Gamma Processing Depth | 12 bit |
| Gamma Adjust | HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, 3 Custom modes |
| Color Management | 6-Axis adjustable CMS |
| MPC | Yes |
| Filmmaker Mode | Yes |
| Low Latency Mode | Yes |
| Clear Motion Drive | Yes |
| Motion Enhance | Yes |
| Auto Calibration | Yes |
| Optional Probe needed | Yes |
| Installation Mode | Yes |
| Number of modes | 10 |
| Included settings | Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect |
| Anamorphic Modes | 4 Modes (A, B, C, D) |
| Control4 SDDP | Yes |
| Power & Environment | |
| Power Requirement | AC100-240V, 50/60Hz |
| Projector in Use | 440W |
| Standby | Eco-mode: 0.2W |
| Network Standby | 1.21W (LAN) |
| Fan Noise | 24 dB |
| Eco Mode | Yes |
| Standby Timer | Yes |
| Operating Temperature | 5°C to 35°C |
| Operating Humidity | 20% to 80% |
| Installation Angle | Horizontal +/- 10 degree / Vertical +/- 10 degree |
| Installation Height | Below 2,000 m |
| In the box | |
| Remote Control | Yes, RM-MH27 |
| Quick Guide | Yes |
| Power Cord | Yes |
| Batteries | Yes, 2 x AAA-size batteries |
| Dimensional & Weight | |
| Product Dimensions (WxHxD) | 500 x 234 x 505 mm |
| Product Weight | 28.5 kg |
