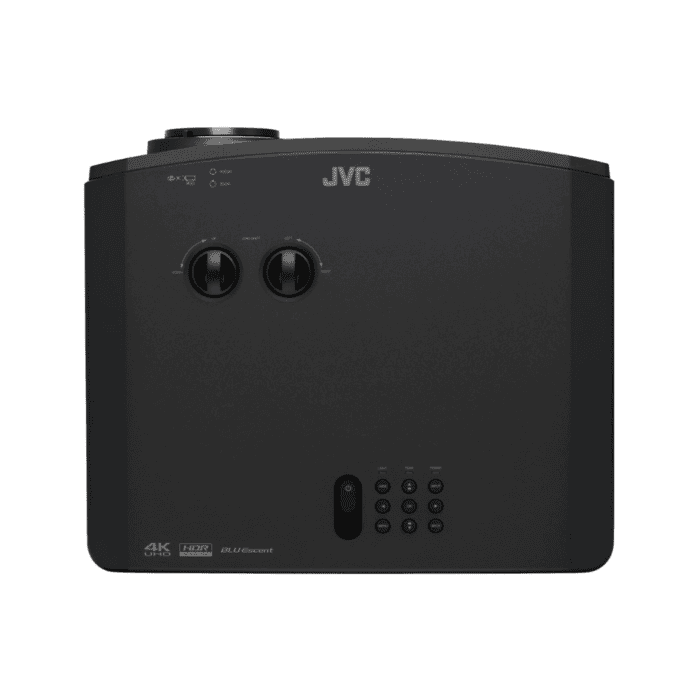

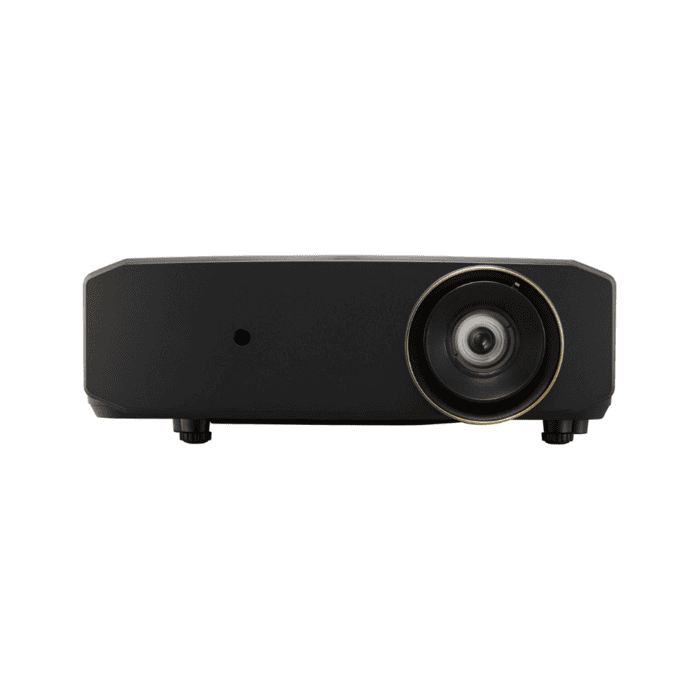

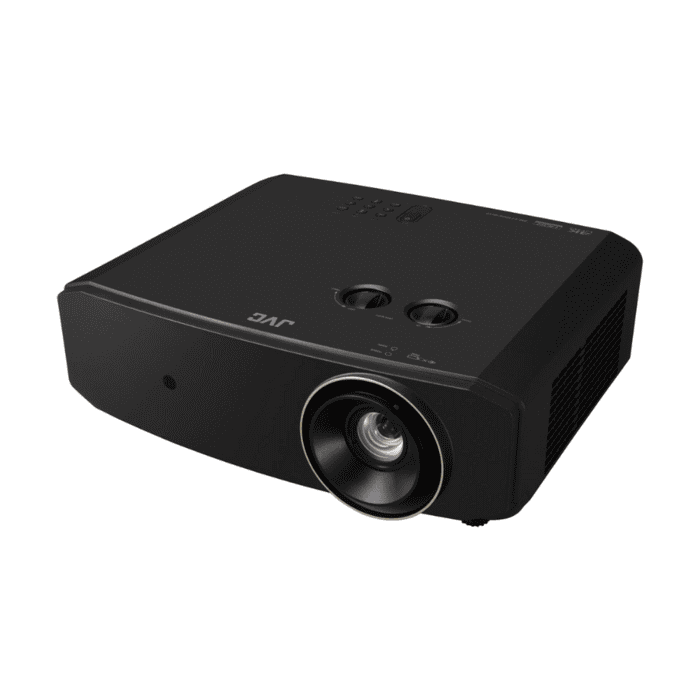

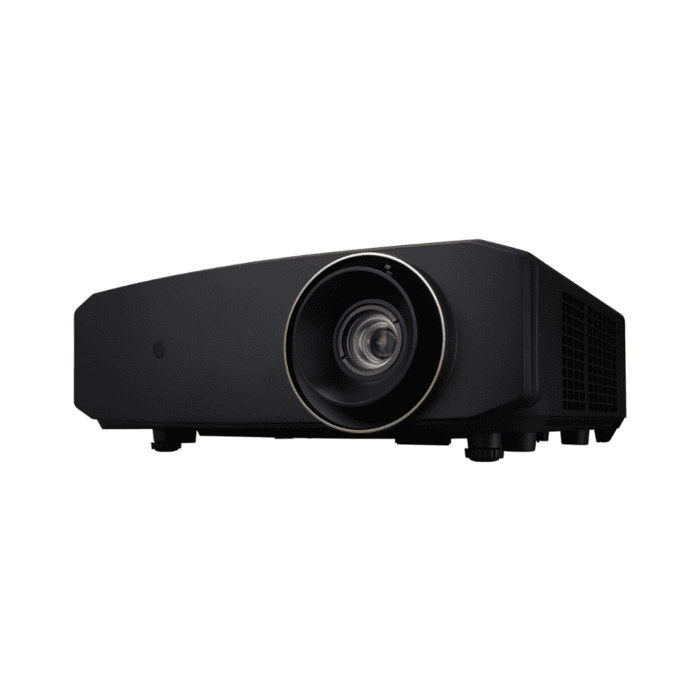

LX-NZ30 4K Projector
RM17,999.00
High Brightness and Long life
JVC’s proprietary laser light source technology, Blu-Escent, uses a blue laser diode as the light source. The LX-NZ30 achieves a high brightness of 3,300 lm and laser life expectancy of approximately 20,000 hours.
Lens Shift function
Flexible installation is made possible thanks to the wide lens-shift function. As described in the diagram, wide shift ranges are offered vertically and horizontally to help deliver natural projected images without distortion.
Highlights
- 4K resolution (3840 x 2160) and HDR (HDR10/HLG) compatible.
- Low Latency and 1080p/240Hz input especially for next level gaming
- 4K input specs: Supports 4K60p/50p 4:4:4/8bit 4:2:2/12bit and 4K30p/25p/24p 4:4:4/12bit signals
- Connectors: Display Port in, HDMI x2 with HDCP 2.3 support, USB Type C, USB Type A (1.5 A power supply), and RS-232, LAN and Trigger (12 V)
- “BLU-Escent” Laser Light Source
- 3,300 lumens brightness and 20,000-hour long life
- ∞:1 Contrast with Dynamic Laser Dimming
- Lens: 1.6X Wide Zoom (1.36:1 – 2.18:1)
- Wide lens shift function: +/-60% vertical, +/-23% horizontal
- Second Generation .47″ XPR DMD Technology for bright 4K images
- Available in 2 colors (black and white)
| Device | |
| DLP Technology | Yes |
| Chip Type | 0.47″ DMD |
| 4K UHD | Yes |
| Number Of Chips | 1 |
| Display Resolution | 3840 x 2160 |
| Light Source | |
| Laser | Yes |
| Type | BLU-Escent Laser |
| Life Time (Standard Mode) | 20000 hours |
| Picture | |
| Brightness | 3300 lm |
| Dynamic Light Power control | Yes, 2 Modes |
| Manual Light Power control | Yes |
| 100% REC 709 | Yes |
| HDR | |
| HDR10 | Yes |
| HLG | Yes |
| Auto Tone Mapping | Yes |
| Mastering Info Display | Yes |
| HDR Picture Modes | HDR10 / HLG |
| Lens | |
| Zoom | 1.6 x |
| f | 14.3 – 22.9mm |
| F | 1.809 |
| Lens Shift | Yes |
| Range Horizontal | ± 23 % |
| Range Vertical | ± 60 % |
| Projection Display size (diagonal) | 60 – 200 inch |
| HDMI | |
| HDMI | Yes |
| Version | 2.0 |
| Number of Inputs | 2 |
| HDCP Version | 2.3 |
| 4K60P signal input | Yes |
| 2K240p signal input | Yes |
| Video Signal range | 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 240/120/ 60/ 50/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24 |
| PC Signal range | VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / UXGA / WQHD (60) / FHD (240) / UHD (60) |
| Input Level Adjustment | Auto / Normal (16-235) / Enhanced (0-255) |
| Connections | |
| Display Port | Yes |
| Trigger out | Yes |
| Power | DC 12V / 100mA |
| LAN | Yes |
| Connector | RJ45 |
| USB | Yes |
| Connector | 1 x USB type C input (DP Alt mode support), 1x USB type A output (5V/1.5A) |
| RS-232 | Yes |
| Connector | D-sub 9-pin |
| Picture settings | |
| Picture Modes | Natural. Cinema, Dynamic, User 1 & 2 |
| Color Temperatures | High, Normal, Low |
| Gamma Adjust | 2.2, 1.8, 2.0, 2.1, 2.3, 2.4, 2.6, Contrast Priority, Brightness Priority |
| Color Management | 3D Color Management |
| Low Latency Mode | Yes |
| Power & Environment | |
| Power Requirement | AC100-240V, 50/60Hz |
| Power Consumption | 360W |
| Standby | 0,5W |
| Fan Noise | 34 dB |
| Eco Mode | Yes, 29dB |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% |
| In the box | |
| Remote Control | Yes |
| User Manual | Yes |
| Power Cord | Yes |
| Batteries | Yes |
| Dimensional & Weight | |
| Product Dimensions (WxHxD) | 15-7/8″ x 5-3/4″ x 13-1/2″ |
| Product Weight | 13 Lb |
